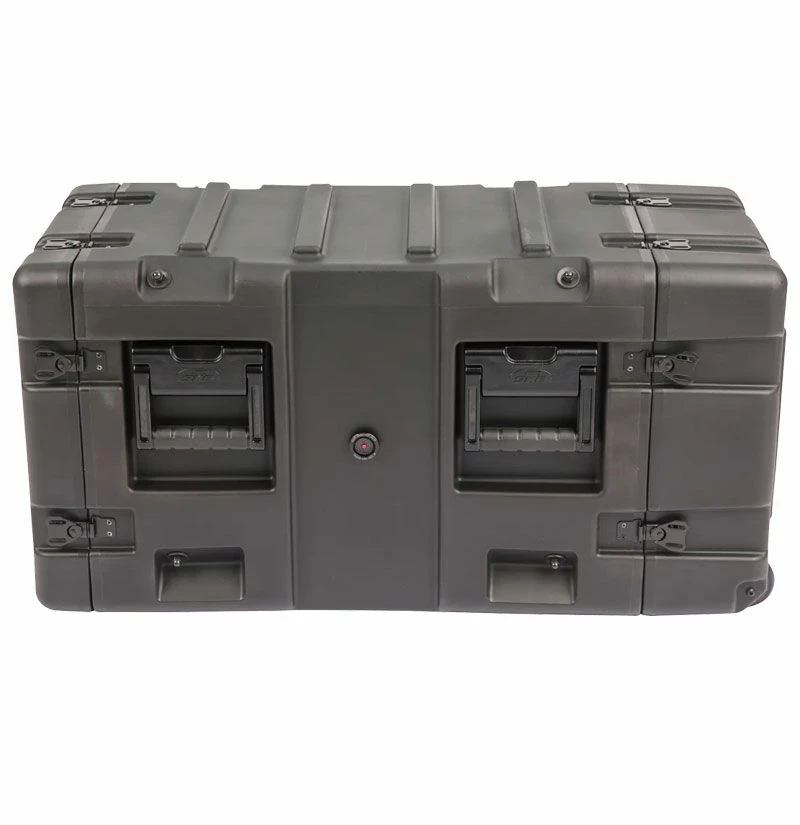

SKB 20 In. Deep 5U Removable Shock Half Rack

SKB 5U Removable 20 Inch Deep Half Rack Shock Rack with Built-In Wheels and Pull Handle

SKB’s 3RR Series Removable Half Rack Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment. Molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards, these Shock Racks also include 8 elastomeric shock absorbers which allow for a standard payload range of 40 to 150 lbs (optional extended payload range of 160 to 300 lbs can be accommodated as a special order option). The 20 in. 3RR Series Removable Racks are 20 inches deep from rail to rail with a standard 19 in. rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.

The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) half rack case comes with 1 in. deep front lid and 4 in. deep rear lid to accommodate rack gear that is longer than 20 inches. Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.

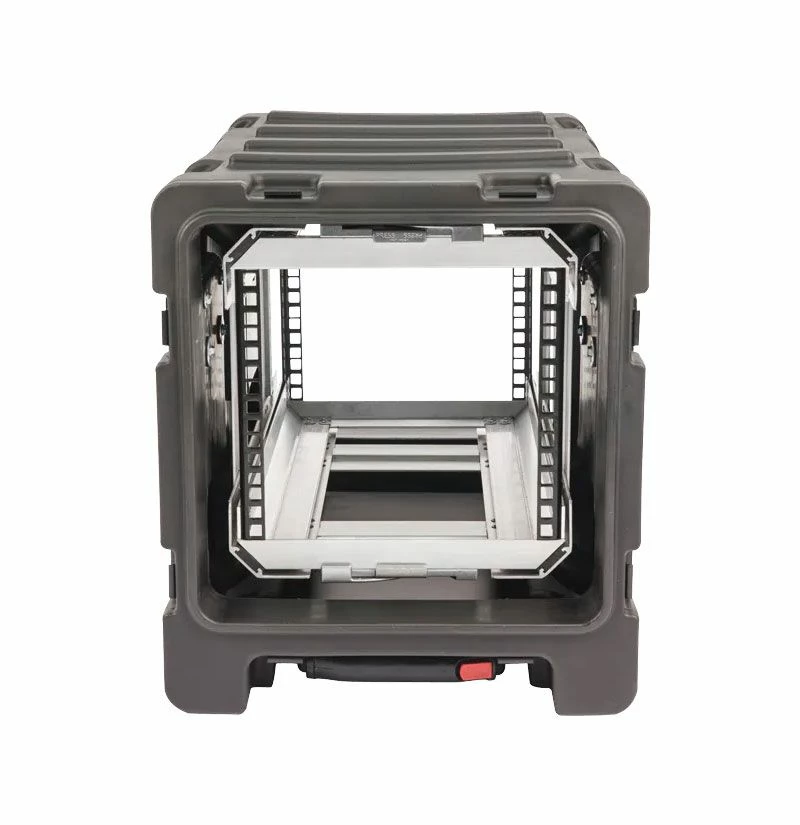

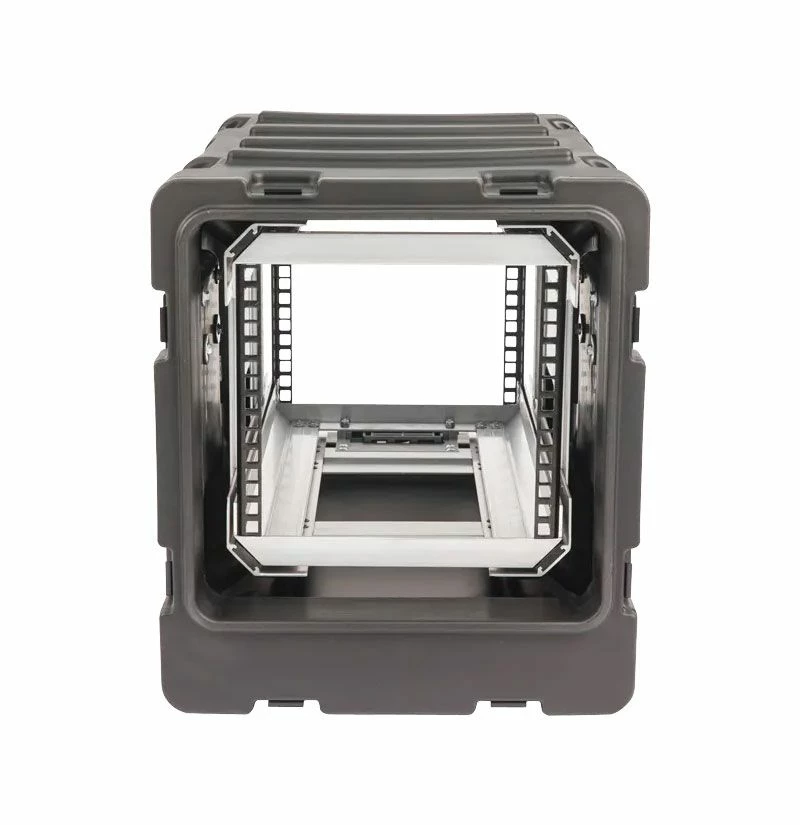

The interior of the half rack case features a removable rack with a patent pending “positive lock” latching system that slides open like a file drawer, allowing full access to racked equipment. The interior rack is also completely removable allowing complete frame access for bench integration.

• 5U Half-Sized 9.5 in. Width
• Standard Rack Depth 20 in. Rail to Rail
• Removable Lids, 1 in. Deep Front Lid and 4 in. Deep Back Lid
• Completely Removable Frame for Access to Bench Integration

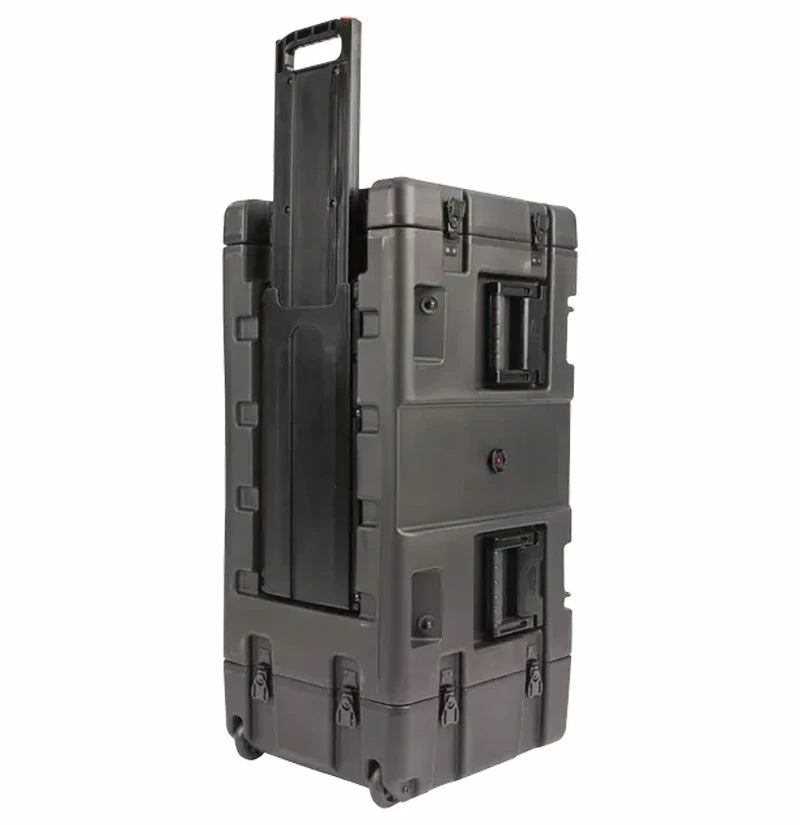

• Built-In Wheels and Telescoping Pull Handle for Maximum Portability
• Meets or exceeds MIL-STD 810G
• Standard payload range of 40 to 150 lbs
• Square Hole Rack Rails to Accommodate Either #10-32 US Standard or 6mm International Standard Cage Nuts
• Rugged Roto-Molded Shell Ensures Industry Leading Strength and Impact Resistance
• Molded In Stacking Ribs and Lugs are Designed to Stack with All SKB 3RR & 3RS Cases, as well as Competitive Manufacturer Cases
• Recessed Black Powder Coated Stainless Steel Hardware
• Four (4) Comfort Grip Spring Loaded Lift Handles
• Automatic Pressure Relief Valve (Standard)
• Lid Hangers (Standard)
• Case Coupling Straps (Standard)
• IP67 Certified for Protection of Dust Ingression and Water Submersion (1 Meter Submersion for 30 Minutes)
• Includes Million Mile Warranty
• Proudly Made in the USA

---

UPC Code:
3RR-5U20-HR – 789270007611

---
