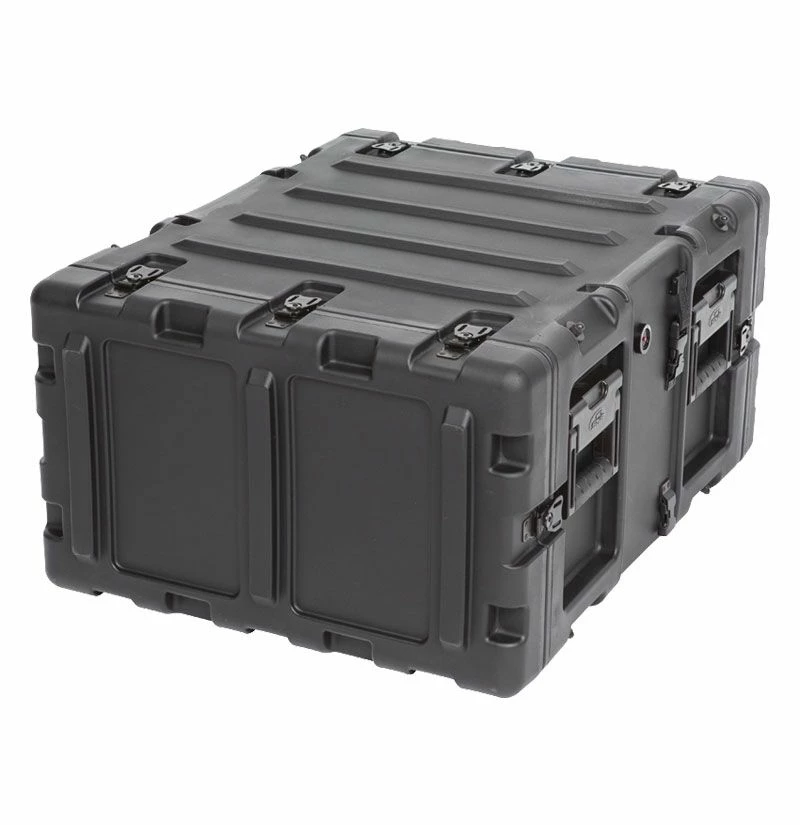

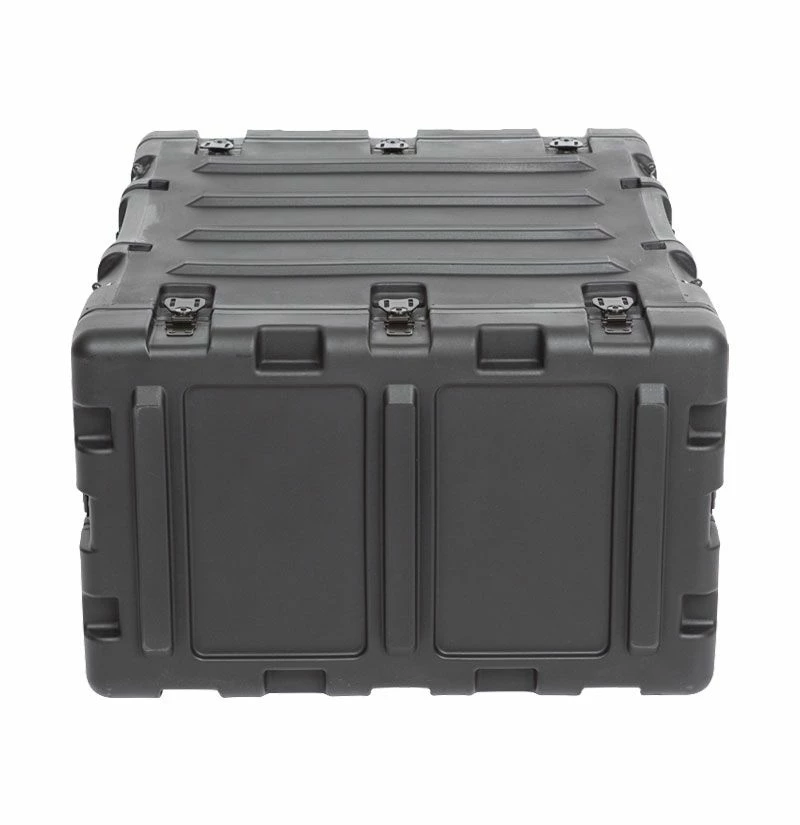

SKB 20 In. Deep 5U Static Shock Rack

SKB 5U 20 Inch Deep Static Shock Rack

SKB’s 3RS Series Static Shock Rack Cases are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment. The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs to 150 lbs in a standard configuration (optional extended payload range of 160 lbs to 300 lbs can be accommodated as a special order option). The interior frame and shocks provide adequate sway for ambient air circulation and heat dissipation.

3RS Series cases are molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards. Measuring 20 in. deep from rail to rail with a standard 19 in. rack width per ANSI/EIA-310-C specification, 3RS Shock Racks also feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.

The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2 in. deep front and rear lids to accommodate rack gear that is longer than 20 inches. Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.

• Meets or exceeds MIL-STD 810G
• IP67 Certified for protection of dust ingression and water submersion (1 meter submersion for 30 minutes)
• Standard payload range of 40 to 150 lbs
• Optional extended payload range 160 to 300 lbs
• Standard 19 in. rack width per ANSI/EIA-310-C
• Standard rack depth 20 in. rail to rail
• Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
• 2 in. front and rear lids
• Rugged roto-molded shell ensures industry leading strength and impact resistance
• Molded in stacking ribs and lugs are designed to stack with all SKB 3RR & 3RS cases, as well as competitive manufacturer cases
• Recessed black powder coated stainless steel hardware

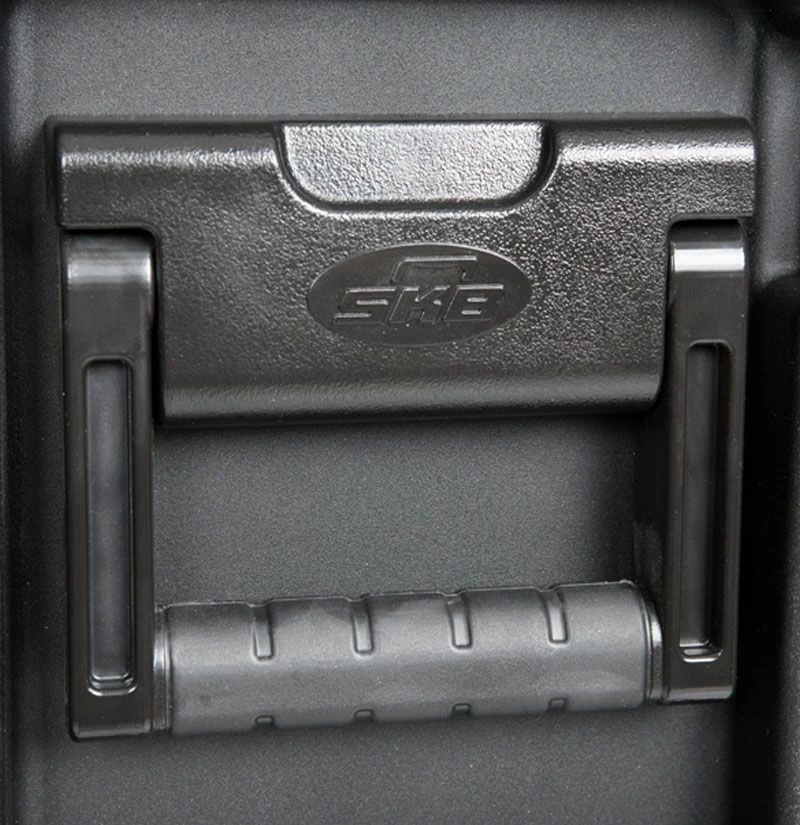

• 4 comfort grip spring loaded lift handles
• Automatic pressure relief valve (standard)

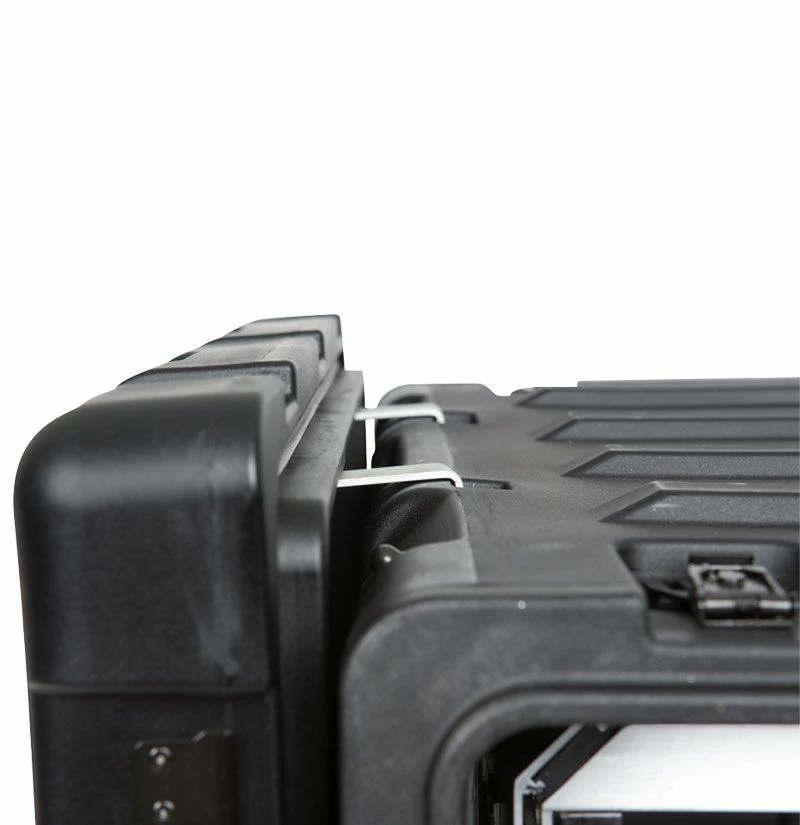

• Lid hangers (standard)

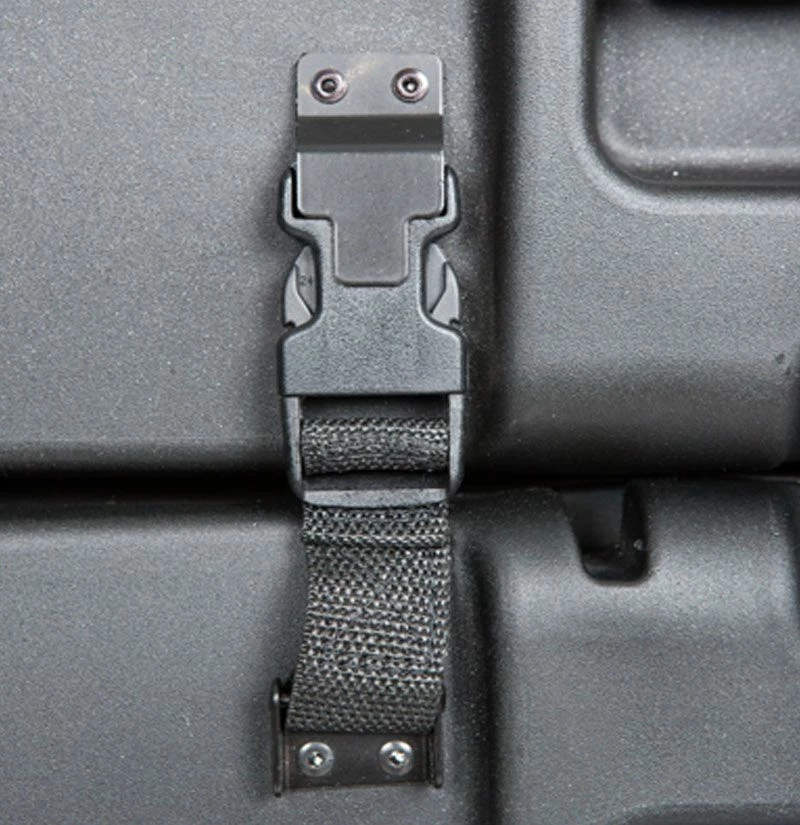

• Case coupling straps (standard)
• Includes Million Mile Warranty
• Proudly Made in the USA

---

UPC Code:
3RS-5U20-22B – 789270999466

---

Note: 3RS 20 in. Shock Racks do not come standard with wheels.
